Generating a Data Log

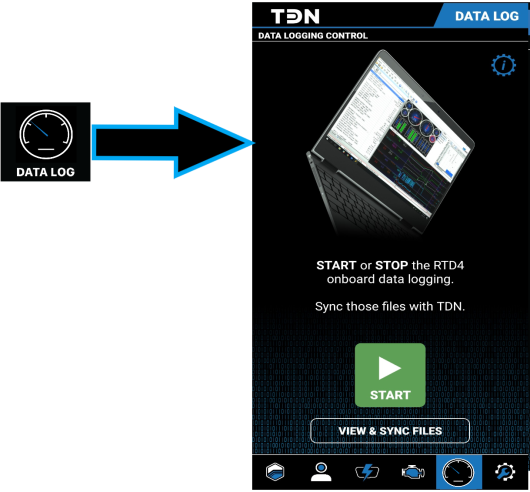

1. Tap the Data Log button on the navigation bar. The Data Logging Control screen appears.

2. Tap the settings icon (gear in the upper-right corner). A popup containing settings for the data logging function appears.

A screenshot of a phone Description automatically generated with medium confidence

3. Choose an appropriate time limit for this logging session. If the tuner prefers English or metric units, that can also be specified here.
4. Connect the MPVI2/2+ to the vehicle and start the ignition.
5. Tap the START button to begin the session. The user should pay attention to the status displayed. There is a delay before logging actually starts.
6. Once logging starts, a screen with gauges is displayed, allowing the user to monitor the vehicle’s data in real time. The screen can be displayed in either portrait view or landscape view.

A picture containing text, electronics Description automatically generated    Graphical user interface Description automatically generated with low confidence

7. Drive the car (or put it on a dyno) to reflect as broad a range of engine performance data as possible.

A screenshot of a phone Description automatically generated with medium confidence

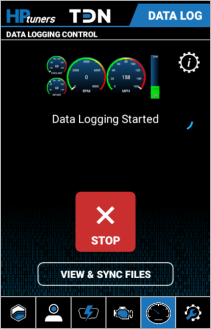

8. When enough data has been gathered, end the session by doing one of the following:
￭ Tap the STOP button.
￭ Wait until the time selected earlier is reached.
